Crf230m Top Speed

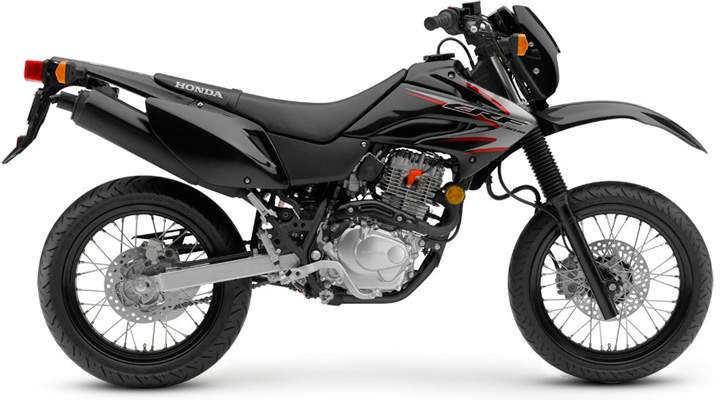

Honda CRF 230M
| Make Model | Honda CRF 230M |
| Year | 2009 - |
| Engine | Four stroke single cylinder, SOHC 4 valves |
| Engine | Four stroke single cylinder, SOHC, 4 valves |
| Capacity | 223 cc / 13.6 cu-in |
| Bore x Stroke | 65.5 x 66.2mm |
| Cooling System | Liquid cooled |
| Compression Ratio | 9.0:1 |
| Lubrication | Wet sump |
| Induction | Single 30 mm CV carb |
| Ignition | CD with electronic advance and lighting coil |
| Spark Plug | NGK, DPR8EA-9 |
| Starting | Electric & Kick |
| Max Power | 18.6 hp / 13.7 kW @ 8000 rpm |
| Max Torque | 18.8 Nm / 1.92 kg-m @ 6000 rpm |
| Clutch | Wet, multiple discs, cable operated |
| Transmission | 6 Speed |
| Final Drive | #520 O-ring-sealed chain |
| Frame | Steel, Single cradle frame |
| Front Suspension | 37mm leading-axle Showa� fork |
| Front Wheel Travel | 228 mm / 9.5 in |
| Rear Suspension | Pro-link Showa� single shock with adjustable spring preload |
| Rear Wheel Travel | 130 mm / 6.3 in |
| Front Brakes | Single 240mm disc 2 piston caliper |
| Rear Brakes | Single 220mm disc |
| Front Tyre | 110/70-17 |
| Rear Tyre | 130/70-17 |
| Wheelbase | 1340 mm / 52.7 in |
| Seat Height | 805 mm / 31.7 in |
| Dry Weight | 113 kg / 249 lbs |
| Fuel Capacity | 8.6 Litres / 2.27 gal |
The all-new CRF230M is street-ready for hours of urban and backroad adventure, with sporty 17-inch wheels and low-profile tires, plus a torquey, electric-start engine that boasts exceptional fuel economy. This agile street specialist features a dependable 223cc single-cylinder air-cooled four-stroke engine that pumps out plenty of user-friendly. Finally, the CRF230M packs CRF�-R-inspired bodywork and graphics to provide lots of style while you're on the go.
Features
- Motard-styling with a low and comfortable seat, allows maximum rider movement.
- Aggressive 23.9-degree rake and 91mm of trail provide spirited handling.
- Lightweight 17-inch wheels with sporty low-profile 70-series Dunlop GT401 Arrowmax tires.
- Lightweight Renthal aluminum handlebar with comfortable grips
- CRF�inspired bodywork and graphics with a black frame
ENGINE / DRIVETRAIN
- Dependable 223cc single-cylinder air-cooled four-stroke engine offers plenty of user-friendly power and lots of torque spread over a wide rpm-range.
- 30mm CV carburetor for crisp throttle response.
- Electric start for easy starting.
- Lightweight aluminum crankcase.
- Maintenance-free CD ignition.
- Heavy-duty clutch offers smooth, progressive engagement.
- Smooth-shifting, versatile six-speed transmission.
- Heavy-duty O-ring�sealed chain for durability and reduced maintenance.
CHASSIS / SUSPENSION

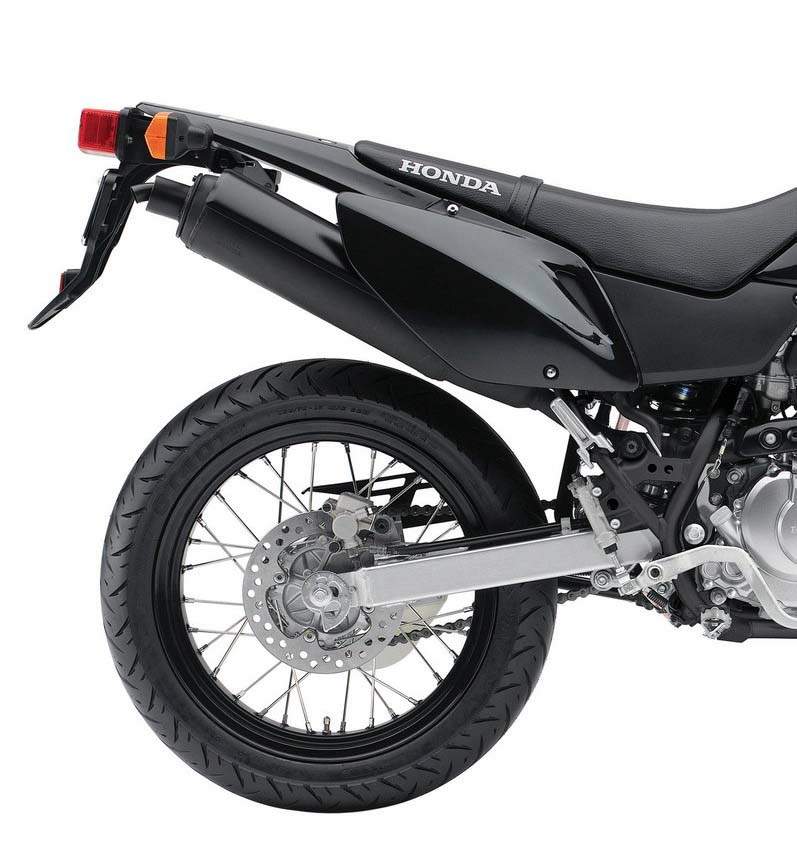

- Wide box-section aluminum swingarm provides excellent rigidity to manage traction capability of large rear tire.
- Lightweight semi-double-cradle high-tensile steel frame.
- 37mm leading-axle Showa front fork offers 9.0 inches of suspension travel.
- Heavy-duty Showa rear shock offers 6.6 (167mm) inches of travel for optimum front/rear balance.
- Fork boots keep dirt and moisture away from fork seals.
- Snail-type chain adjusters for easy maintenance.

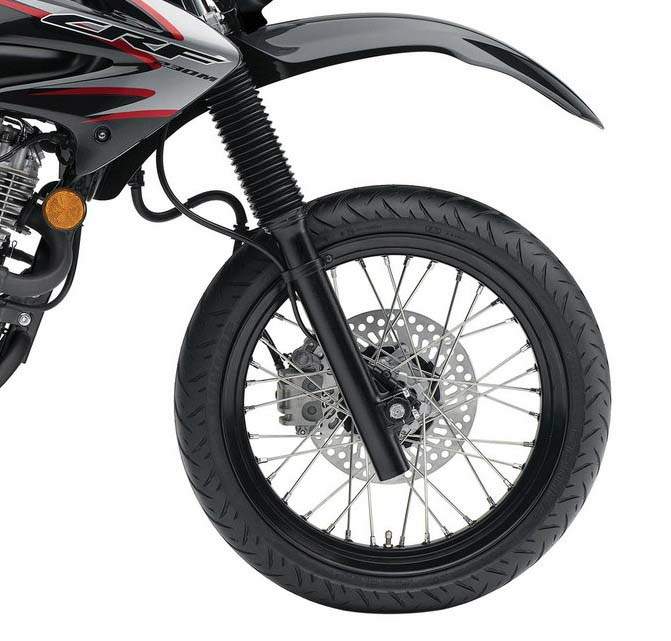

- Powerful 240mm front disc brake, and 220mm rear disc brake.- Road-ready, lightweight 17-inch wheels�3.0-inch front, 3.5-inch rear�with straight-pull spokes.
- Grippy Dunlop GT401 Arrowmax 110/70-17 front and 130/70- 17 rear tires.
ADDITIONAL FEATURES
- Durable front and rear steel sprockets.
- Wide cleated, folding, self-cleaning footpegs feature rubber-mount pads to minimize vibration and provide secure footing.
- Cleated brake pedal provides excellent grip.
- Quiet, USDA-qualified spark arrester/muffler.
- Maintenance-free sealed battery.
- Ignition switch key for added security.
- Transferable one-year limited warranty; extended coverage available with a Honda Protection Plan.
- Purchase of a new, previously unregistered Honda USA-certified unit by an individual retail user in the United States qualifies the owner for a one-year complimentary membership in the Honda Riders Club of America� (HRCA�). Visit www.hrca.honda.com for details.
AVAILABLE ACCESSORIES
- Rear Rack
- Hand Guard Kit
- Cycle Cover
- Rear Carrier
- Rear Storage Bag
